Cordis Bridge

The Cordis bridge embeds the DeepSeek Harness (DSH) engine inside Libre WebUI's backend. DSH runs as a plugin tree inside a Cordis runtime hosted by Libre WebUI, so its capabilities arrive as Cordis services rather than as imported modules.

The bridge is off by default. Nothing on this page happens until an operator enables it (see Cordis Configuration).

Why a bridge instead of a direct integration

Importing DSH's packages from Libre WebUI's services would be shorter and worse. A direct import makes the engine a compile-time dependency, so changing a model adapter, swapping the agent loop, or removing the engine means editing and redeploying Libre WebUI.

The bridge inverts that. Libre WebUI depends on one abstract contract, and a Cordis composition document decides what satisfies it:

• Retarget without a rebuild. The composition is a YAML file, so pointing the engine at a different provider is a configuration change.
• Configure capabilities. Each capability is a loader row. Changes to the operator-maintained composition take effect the next time the host starts.
• Remove cleanly. Every service, listener, and effect the engine installs is owned by the root fiber. Disposing that fiber rolls all of it back, so an operator can stop the engine without restarting Libre WebUI.

Layers

Concrete DSH dependencies stay inside backend/src/cordis/dsh/. Routes and application services consume the bridge contracts. The Work driver has a separate in-memory composition and never mounts the host filesystem plugins.

Contracts

The contract lives in backend/src/cordis/contracts.ts. It is deliberately narrow: the shapes Libre WebUI's API needs, expressed without engine vocabulary.

Contract	Purpose
DshEngine.status()	Lifecycle state of each engine service (pending / ready / failed)
DshEngine.modelConfiguration()	Model and provider defaults of the running composition
DshEngine.listSessions()	Session summaries, newest first
DshEngine.getSession(id)	One session with its projected messages
DshEngine.createSession(opts)	Reserve a session id and working directory
DshEngine.updateSessionSettings(id, settings)	Persist the real model selection and native filesystem permission mode while idle
DshEngine.decideApproval(id, approvalId, decision)	Resolve one pending native tool approval for its owning session
DshEngine.deleteSession(id)	End a session and dispose its agent
DshEngine.listAgents()	Live agents, flagged as root or child
DshEngine.listTools()	Model-facing tools the engine registered
DshEngine.sendMessage(id, txt)	Start a turn and return a stream handle
DshEngine.cancel(id)	Cancel the in-flight turn for a session

The contract is published as the Cordis service libreDshEngine, so a consumer reads it with ctx.get('libreDshEngine') and never imports the bridge module.

EngineStreamChunk carries text, reasoning, tool-call, tool-result, approval-request, approval-decision, error, and done. Live frames are routed by their owning agent and session; the matching durable assistant message is not emitted a second time. sendMessage returns a handle whose subscribe replays anything already emitted, so a fast first token cannot be lost between the engine starting the turn and the HTTP handler attaching its listener.

Sequence: one chat turn

NDJSON is used rather than a WebSocket because a turn is a single server-to-client sequence after the request. Keeping it on the POST avoids a second handshake, ticket, and reconnect protocol, and keeps the whole turn inside one authenticated request.

DONE and PENDING

Cordis activates a plugin when the services it declares are available, so a row spends time in states that are not "running yet". Two distinct notions matter, and confusing them is the most common source of a silent engine.

Loader entry state. The Loader tracks each row through PENDING → LOADING → ACTIVE, or FAILED. A row whose declared services are missing stays pending indefinitely rather than failing, which is why an incomplete composition produces an engine that starts but serves nothing.

Service availability. The host reports each expected service as:

State	Meaning	Cause
pending	Not registered on the context	The providing row has not activated, or is disabled
ready	Registered and usable	The providing row activated
failed	Declared but unusable	Reported with a detail string

host.status() lists every expected service with its availability and names the required ones that are missing; GET /api/cordis/health exposes the same information. A composition that omits a required service makes startup throw rather than publish an engine that answers with empty lists.

Two dependency chains are easy to get wrong:

• dsh-tools cannot start without systemPrompt.
• dsh-agent-loop cannot start until agents, sessions, llm, tools, systemPrompt, and sessionProjections all exist.

A composition missing any of those produces a working session store and an engine that never answers a message.

Provider configuration

The shipped libre-webui-llm-adapter row serves the model providers configured in Libre WebUI. The Engine page's model picker selects a provider model for a session without replacing that row.

Changes to plugin rows in the composition apply on the next host start. Restart the backend, or disable and re-enable Cordis when the administrator toggle is unlocked. Persisted sessions remain in the configured store and resume through the current composition.

Trusted integration code can use Cordis Loader lifecycle APIs directly. The bridge does not expose an adapter-swap endpoint or automatically restore a previous adapter when a replacement fails.

Rollback

Disposing the host's root fiber removes everything the engine installed. That single ownership edge is the whole guarantee, and it holds because:

• Services are registered by plugins, so they are withdrawn with their fiber.
• session/event subscriptions are registered inside the bridge's own constructor and belong to the bridge row's fiber.
• Agent handles are tracked by the bridge and disposed in its teardown effect.
• The host disposes the root context, which owns every row.

stopCordisHost() is idempotent, and it is wired into the backend's shutdown sequence so the engine's timers and file handles are released rather than left to process exit.

Session identity and persistence

The Engine page reserves an opaque session ID at creation. With persistence on, its header is immediately stored, so even an empty session survives restart. The bridge lists both stored and live sessions, reads stored logs through DSH's validated persistence API, and resumes the agent on the same ID for a follow-up. New user messages use DSH's identified-message constructor.

Deleting a session cancels and disposes its agent before removing its artifact. The local JSONL deletion adapter validates the store and session paths and rejects symlinks. Custom persistence backends without deletion support return an error instead of claiming that data was removed.

Cancellation reaches the native agent, model request, and tool work. A client that disconnects cancels its turn; completed messages remain readable. Buffered stream replay is bounded and preserves a fast response before a reader attaches.

The host Engine is a single-replica solo feature. Team deployments cannot mount its local JSONL runtime. Sandboxed Work uses its existing SQL-backed task, run, message, approval, and event repositories instead.

HTTP surface

Method	Path	Purpose
GET	/api/cordis/health	Bridge state; unauthenticated
GET	/api/cordis/sessions	List sessions
POST	/api/cordis/sessions	Create a session
GET	/api/cordis/sessions/:id	Read a session with its messages
DELETE	/api/cordis/sessions/:id	End a session
POST	/api/cordis/sessions/:id/messages	Send a message, stream NDJSON
POST	/api/cordis/sessions/:id/cancel	Cancel the in-flight turn
GET	/api/cordis/agents	List live agents
GET	/api/cordis/tools	List registered tools

Every route except /health requires an authenticated administrator session and answers 503 with a code of CORDIS_DISABLED, CORDIS_STARTING, or CORDIS_UNAVAILABLE while the bridge cannot serve requests.

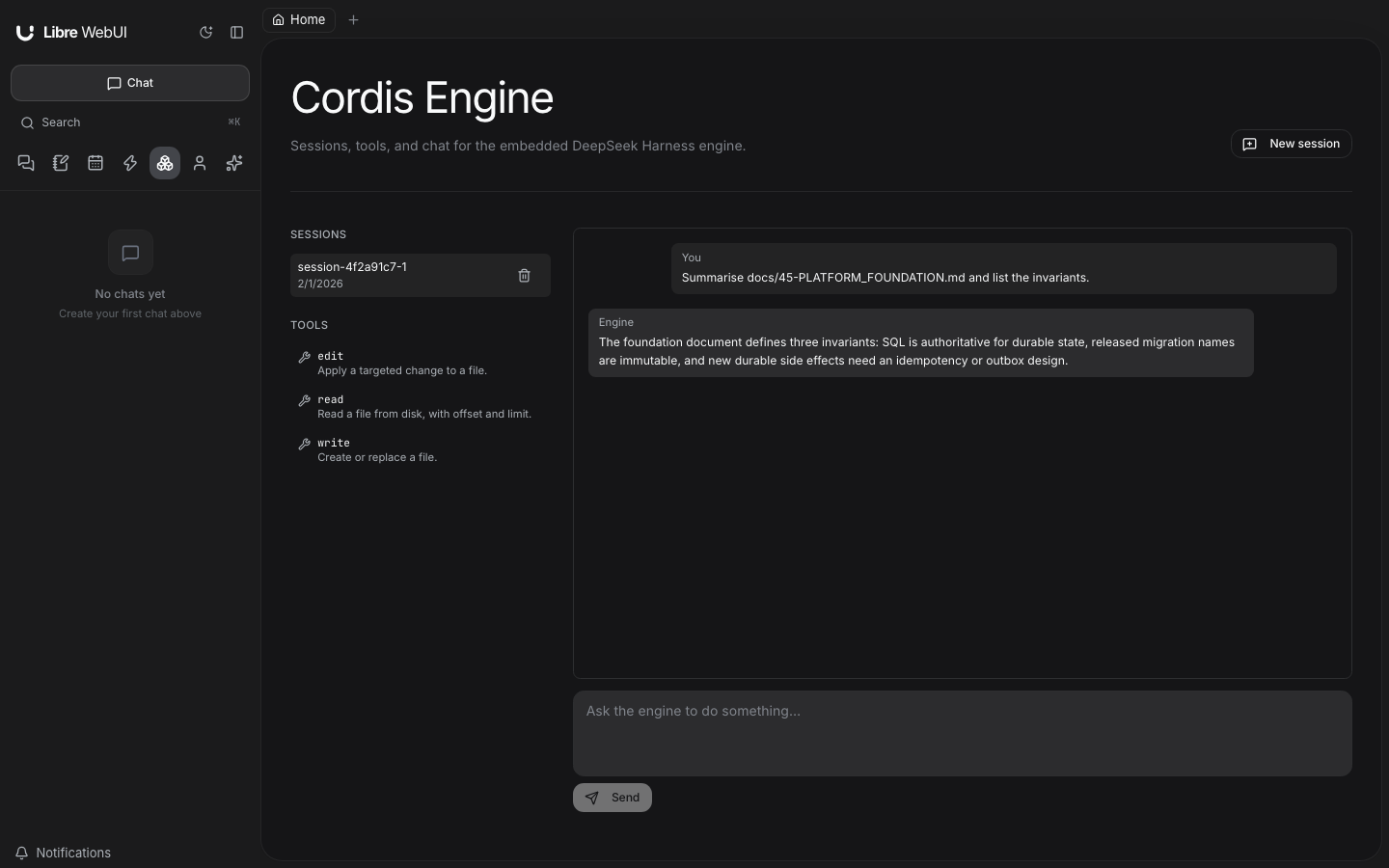

The page is frontend/src/pages/CordisPage.tsx, reachable at /cordis from the sidebar. It lists sessions and registered tools, creates sessions, and streams a turn into the transcript. When the bridge is off or cannot start it renders the reason instead of an empty list, because "no sessions" and "no engine" look identical otherwise.

The browser client is frontend/src/utils/api/cordisApi.ts. It talks to this surface only — it imports no backend type and no @deepseek-ai/* package — so the engine stays swappable without a frontend change. A turn is consumed with sendMessage(sessionId, text, { onChunk }); the client parses the newline-delimited JSON itself and tolerates chunks split across network reads.

Engine chat controls

The Engine page renders Markdown, tables, and syntax-highlighted code blocks, with copy controls for replies and code. System prompts and injected runtime context are grouped under a collapsed Session context disclosure; they are not shown as messages authored by the user. Exposed reasoning and tool activity have separate disclosures, and tool results remain paired with the correct operation after reload.

Choose an actual provider model in the composer. The picker uses the signed-in administrator's available local and plugin models, including provider identity. Chat persona and agent selections are not model IDs and do not inject their instructions into an Engine conversation. Old failed persona-model headers are ignored as default-model hints without changing the saved log.

Each session has its own Read-only or Workspace write setting, enforced by DSH's filesystem policy and the bridge's canonical workspace boundary. The composer shows the workspace scope. Settings are saved as native session events and survive restart; changes are refused while a turn is active.

A native escalation request appears as an Allow once / Deny card attached to the operation. Approval applies to that request only and leaves the standing permission mode unchanged. Stale or cancelled requests cannot be approved, and headless Chat calls reject questions they cannot present. The bridge does not offer unrestricted host access.

The additional administrator endpoints are:

Method	Path	Purpose
GET	/api/cordis/models	Available provider models and the current real-model default
PATCH	/api/cordis/sessions/:id/settings	Set this session's model and/or permission mode
POST	/api/cordis/sessions/:id/approvals/:approvalId	Decide one pending request with allowed-once or rejected

Using the engine in Chat

Enable both Access & policies → Agent CLI models and Cordis Engine. Administrators can then select DeepSeek Harness in Chat. Each request gets a fresh transient engine session containing that Chat request's supplied transcript. The normal Chat database remains authoritative; unrelated conversations, forks, and retries cannot share an invisible engine history. The transient engine log is removed after completion or cancellation, and does not appear in the Engine page.

The standard provider composition also lists DeepSeek Harness · model (provider) choices in the Agents group. Their saved IDs wrap the same qualified provider route used by the Engine page: dsh:lwui:ollama:<model> or dsh:lwui:plugin:<plugin>:<model>, with each provider component percent-encoded. An optional local native DSH connection adds dsh:native:<provider>:<model> choices from that instance's live model catalog. These reuse the native provider's configuration and credentials. Install its standalone Apache-2.0 package from libre-webui/dsh-native-provider, or prepare a bundle from the Libre WebUI distribution. Both use the package name @libre-webui/dsh-native-provider and keep provider keys in native DSH. The connection requires the same Unix host and OS account, with a private Unix socket; it cannot isolate applications that share that account. It exposes model inference only, without native agent sessions or native tool execution. See the configuration guide for installation, profile restarts, upgrades and removal. Missing connections or selected models fail without changing providers. Native calls also appear in Provider Usage with their selected model, reported tokens, latency, and result status. The base dsh profile retains the running composition's default model. Custom adapter compositions expose that base profile without advertising unsupported Libre WebUI provider overrides.

Titles and thinking summaries resolve a DSH selection into its underlying provider and make a direct text request without tools or an agent session. A base-profile request reads the running engine's defaults, including bridge-row overrides, instead of guessing from the current provider catalog. Custom adapters need an explicitly configured Ollama or plugin task model for these features. An unavailable selected provider produces the normal failure or local title preview; it does not cause a request to a different provider.

The authenticated administrator's provider settings and credentials serve the request. No other administrator's credentials are selected implicitly. The configured Cordis workspace remains the default; Chat does not substitute the server user's home directory.

Sandboxed Work

When Cordis is enabled, Work offers a separate Engine control with Libre WebUI and DeepSeek Harness choices. The model picker keeps its normal model names and provider identities. Internally, the DSH selection is stored as dsh:<model> for LWUI-backed providers. Native DSH choices instead store providerType: dsh, the exact native provider ID, and the raw model ID. The normal tool-capability and access checks still apply; native credentials add an active-administrator requirement.

Each run creates an isolated, in-memory DSH agent loop. Its model adapter receives the current Work transcript, provider metadata, images, and tool schemas. Its tool bodies only wait for the results returned by Work; they cannot read host files or start host processes.

Work remains responsible for validating arguments, requesting approvals, executing tools in the workspace runtime, recording results and provider replay state in SQL, enforcing budgets, and publishing events. A denied tool produces the normal denial result. Cancellation disposes DSH and follows Work's existing container cleanup. After worker recovery, a fresh DSH driver receives the restored Work context and does not replay completed tool side effects.

The Work integration does not need the host Engine composition or JSONL session store. It follows Work's existing Docker/Kubernetes runtime and deployment rules, including the shared persistence requirements of team mode.

Security boundary

The Engine page and host-side Chat agent are administrator-only. Engine sessions are a shared administrator console, including their system prompts; they are not a per-user workspace. Ordinary accounts cannot read, create, mutate, or cancel them through the API.

The shipped host filesystem tools confine reads and writes to the configured workspace using canonical filesystem targets, including symlink resolution. Session working-directory overrides must remain inside that workspace. Native DSH mutation policy and one-shot Engine approval decisions still apply. Operator-installed composition plugins are trusted server code and can grant additional capabilities. Engine approvals are separate from Work's approval and container-execution flow.

Work's DSH driver is separate: it mounts no host filesystem, shell, or persistence plugins and can execute only through Work's existing authorization and sandbox. Remote model providers remain opt-in and use the selected account's configured provider route.
